When setting up an aquarium, especially one that involves sump filtration, plumbing, or advanced water flow systems, the aquarium bulkhead fitting is one of the most important components you will need. Despite being small, this fitting plays a critical role in ensuring your aquarium system remains leak-free, secure, and efficient. Whether you are building a reef tank, freshwater setup, or a high-tech planted aquarium, bulkhead fittings are essential for connecting pipes and managing water flow without compromising the integrity of the aquarium glass or acrylic.
In this guide, we will dive deep into everything you need to know about aquarium bulkhead fittings — from what they are and how they work, to installation, types, uses, and maintenance. By the end of this article, you’ll understand why bulkhead fittings are indispensable in modern aquascaping and advanced filtration setups.
What is an Aquarium Bulkhead Fitting?

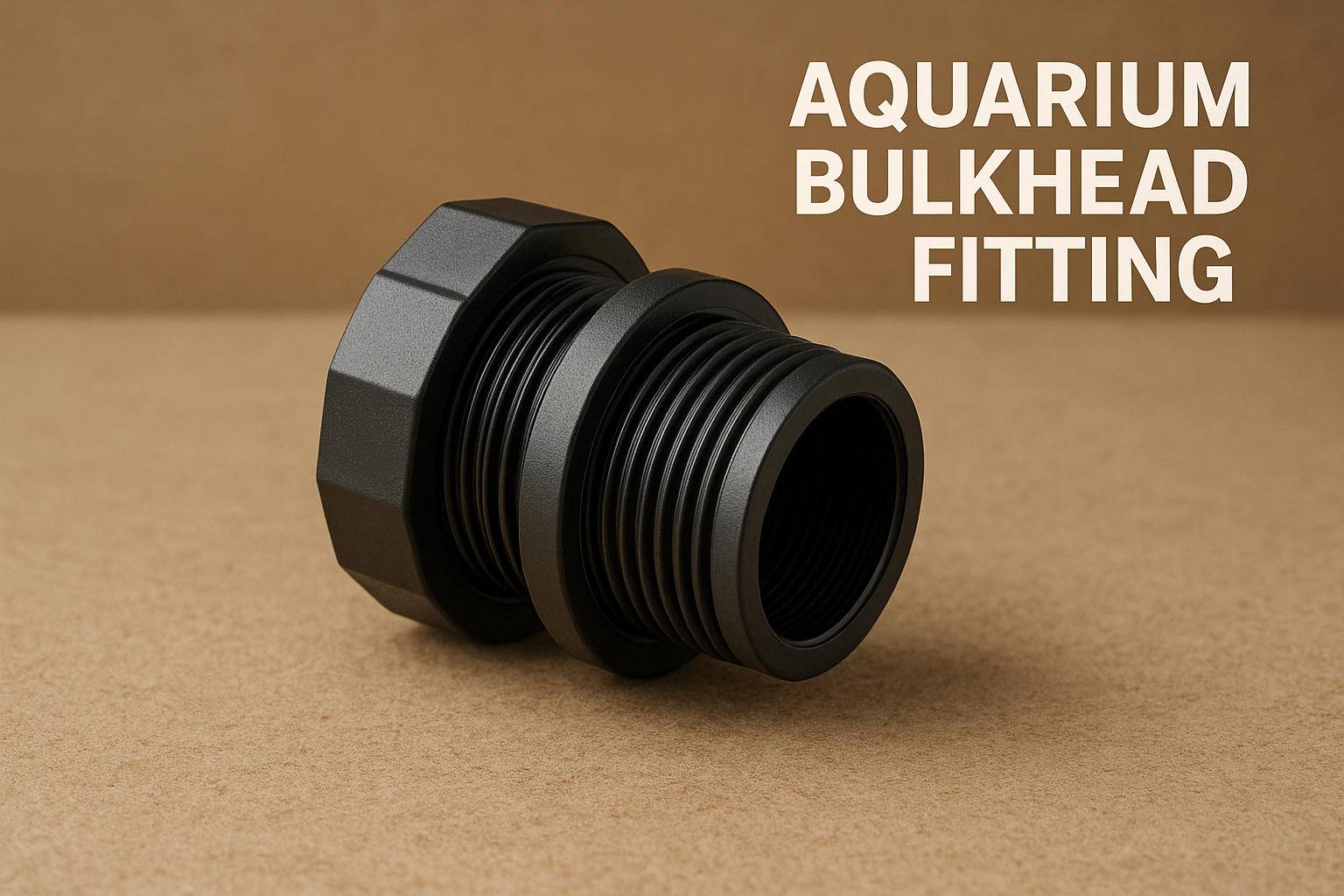

An aquarium bulkhead fitting is a specialized plumbing connector that allows water to pass through an aquarium wall, sump, or tank without leaking. It consists of a threaded body, a nut, and a rubber gasket (sometimes more than one) that creates a watertight seal between the hole in the aquarium and the plumbing pipe.
In simple terms, it lets you connect plumbing (like PVC pipes, hoses, or return lines) through a drilled hole in the glass or acrylic tank. Bulkhead fittings are used to drain water to a sump, return water back to the display tank, or set up overflow and closed-loop circulation systems.
Why are Bulkhead Fittings Important in Aquariums?
- Leak Prevention – Without bulkheads, water flowing through drilled holes would leak uncontrollably. Bulkheads ensure a secure, watertight seal.
- Efficient Filtration – They allow sump filtration systems to function by connecting the display tank with the sump below.
- Durability – Made from strong plastics (such as PVC, ABS, or polypropylene), they can withstand long-term water exposure.
- Flexibility – They can be used in both freshwater and saltwater setups.
- Professional Finish – A bulkhead fitting makes the plumbing look clean, professional, and reliable.
Parts of an Aquarium Bulkhead Fitting
A standard bulkhead fitting usually consists of three main parts:
- Bulkhead Body: The cylindrical threaded section that passes through the drilled hole.
- Nut: A locking nut that secures the fitting to the aquarium wall.
- Gasket: Usually made of rubber or silicone, it creates the watertight seal.
Optional accessories may include strainers, elbows, and adapters to connect different plumbing styles.
Types of Aquarium Bulkhead Fittings
There are several types of bulkhead fittings, and choosing the right one depends on your aquarium setup.
1. Slip Bulkhead Fittings
- Accept PVC pipes that can be glued directly into the fitting.
- Common in reef tanks and sump systems.
2. Threaded Bulkhead Fittings
- Feature internal threads, allowing threaded pipes or connectors to be screwed in.
- Useful for aquarists who may need to disassemble or replace plumbing in the future.
3. Slip x Threaded Combination
- One side is slip, the other threaded.
- Offers flexibility depending on your plumbing design.
4. Schedule 40 Bulkheads
- Standard thickness and strength.
- Suitable for most aquarium setups.
5. Schedule 80 Bulkheads
- Thicker, stronger, and more durable than Schedule 40.
- Often used in large saltwater tanks or systems with high water pressure.
6. Double Gasket Bulkheads
- Feature gaskets on both sides for extra sealing power.
- Great for tanks with unusual wall thickness or higher risk of leaks.
Choosing the Right Size Bulkhead Fitting
Bulkhead fittings come in different sizes (commonly ½”, ¾”, 1”, 1.5”, and 2”). The right size depends on:
- Tank Size – Larger tanks require larger bulkheads to handle higher flow rates.
- Plumbing Needs – Match the fitting size with the PVC pipe or tubing you plan to use.
- Flow Rate – For sump systems, the fitting must handle enough gallons per hour (GPH) without restriction.
Tip: Always drill the aquarium hole slightly larger than the bulkhead’s external diameter to fit the threaded body snugly.
Installation Guide: How to Install Aquarium Bulkhead Fittings
Installing a bulkhead fitting correctly is crucial for preventing leaks. Follow these steps:
- Drill the Hole
- Use a diamond-coated hole saw for glass or an acrylic-safe drill bit.
- Ensure the hole size matches the bulkhead’s requirements.
- Prepare the Bulkhead
- Check the fitting for cracks or defects.
- Place the gasket on the flange side (inside the tank).
- Insert the Bulkhead
- Insert the threaded body into the hole from inside the tank.
- Tighten the Nut
- Secure the nut on the outside of the aquarium wall.
- Hand-tighten only (do not overtighten, as it may crack the tank).
- Attach Plumbing
- Connect PVC pipes, hoses, or fittings as required.
- For slip fittings, use aquarium-safe PVC cement if permanent sealing is desired.
- Test for Leaks
- Fill the tank with water and check around the fitting for leaks.
- If leaking occurs, adjust the gasket placement and retighten gently.
Common Mistakes to Avoid
- Placing the gasket on the wrong side – Always install it inside the tank, against the flange.
- Overtightening the nut – Can crack glass or damage the gasket.
- Using the wrong hole size – Leads to poor sealing and potential leaks.
- Mixing low-quality fittings – Cheap bulkheads often fail under pressure.
- Forgetting maintenance access – Always position bulkheads where they can be reached for cleaning.
Applications of Aquarium Bulkhead Fittings
- Sump Filtration Systems – Allow water to flow between the display tank and sump.
- Overflow Boxes – Used in drilled overflow systems to manage drainage.
- Closed-Loop Circulation – Provide intake and output for external pumps.
- Aquaponics Systems – Connect tanks and grow beds with watertight plumbing.
- Custom Aquarium Builds – Essential in DIY reef tanks, turtle ponds, or large-scale fish systems.
Maintenance of Bulkhead Fittings
While bulkheads are low-maintenance, routine checks help prevent issues:
- Inspect Seals Regularly – Look for cracks in the gasket.
- Clean Algae Build-Up – Prevents clogging around strainers and pipes.
- Replace Worn Parts – Old gaskets or damaged fittings should be replaced immediately.
- Monitor for Salt Creep – In saltwater tanks, salt deposits may affect sealing.
Pros and Cons of Aquarium Bulkhead Fittings
✅ Pros:
- Creates watertight seals.
- Durable and long-lasting.
- Versatile in different setups.
- Allows professional-grade aquarium plumbing.
❌ Cons:
- Requires drilling holes in tanks.
- Incorrect installation can lead to leaks.
- Low-quality fittings may crack under pressure.
Best Practices for Aquarium Bulkhead Fittings
- Always buy high-quality Schedule 80 bulkheads for large tanks.
- Use threaded fittings if you want flexibility for future changes.
- Keep spare gaskets and nuts on hand.
- Test every fitting before filling the aquarium completely.
- Consult flow rate charts to match bulkhead size with pump output.
Conclusion
The aquarium bulkhead fitting may seem like a minor part of your aquarium setup, but it is one of the most important for ensuring proper water management. Whether you are setting up a sump, overflow, or closed-loop circulation, bulkheads provide the secure and watertight connection needed for safe and efficient operation. Choosing the right type, size, and material will save you from leaks, maintenance headaches, and costly repairs in the future.
If you plan on building a reliable and professional aquarium system, investing in quality bulkhead fittings is a decision you won’t regret.
FAQs About Aquarium Bulkhead Fittings
Q1. Can I use a bulkhead fitting without drilling the tank?
No. Bulkhead fittings require a drilled hole to pass through the aquarium wall. However, overflow boxes with hang-on designs can sometimes eliminate the need for drilling.
Q2. Which is better: slip or threaded bulkhead fittings?
Slip fittings are permanent and leak-proof when glued, while threaded fittings allow for easy disassembly and changes. The choice depends on your long-term setup.
Q3. Do I need Teflon tape on threaded bulkhead fittings?
Yes, using Teflon tape helps prevent leaks in threaded connections. However, avoid overtightening.
Q4. Can bulkhead fittings be reused?
Yes, as long as the fitting and gasket are not cracked or worn out. It’s recommended to replace old gaskets for a fresh seal.
Q5. What size bulkhead should I use for a sump system?
For most medium tanks (50–100 gallons), a 1” bulkhead is standard. Larger tanks may require 1.5” or 2” fittings depending on the return pump’s flow rate.
Q6. Can bulkhead fittings handle saltwater aquariums?
Absolutely. Most bulkheads are made from PVC or ABS plastic, which are resistant to corrosion from saltwater.
Q7. Should the gasket go inside or outside the tank?
The gasket must always go on the inside of the tank, against the flange, for the best seal.
Q8. How long do bulkhead fittings last?
With proper care, high-quality bulkhead fittings can last 5–10 years or more before needing replacement.
