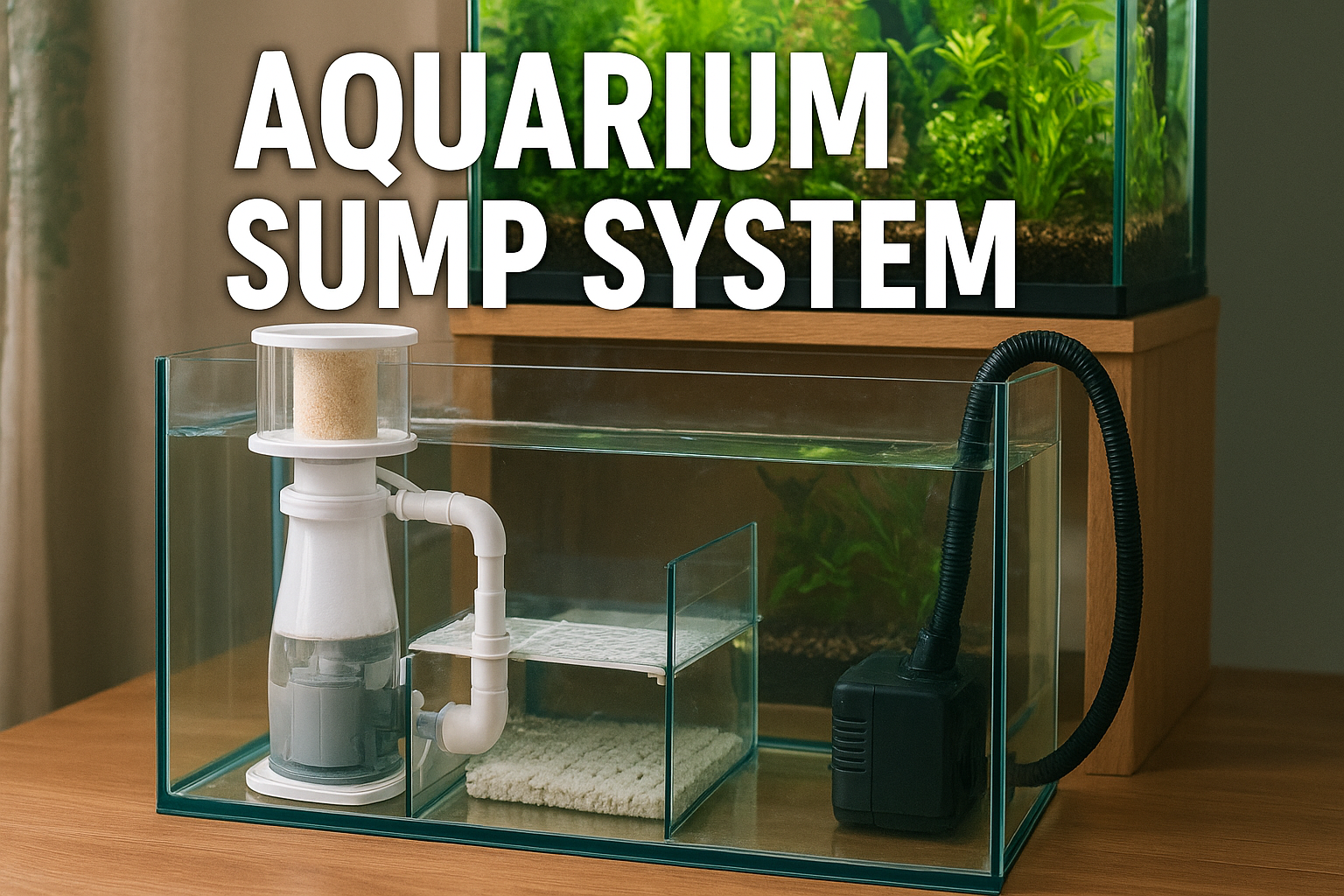

Aquarium Sump System: The Complete Guide for Fishkeepers -

Maintaining a healthy and thriving aquarium is both an art and a science. While most hobbyists are familiar with filters, heaters, and air pumps, a lesser-known but highly efficient filtration method is the aquarium sump system. Popular among reef keepers and large freshwater tank owners, the sump system is considered one of the most effective ways to manage water quality, increase oxygenation, and hide unsightly equipment.

If you’re looking to elevate your aquarium game and provide your fish, corals, and plants with the best environment possible, understanding sump systems is crucial. This guide covers everything you need to know about aquarium sump systems: what they are, how they work, their benefits, setup methods, and maintenance tips.

Table of Contents

What is an Aquarium Sump System?

An aquarium sump system is an auxiliary tank, usually located below the main display aquarium, that holds extra water and houses filtration equipment. Instead of cramming heaters, filters, and skimmers into the display tank, all these components can be placed in the sump.

Water is drained from the aquarium (via an overflow system), passes through the sump where it is filtered and treated, and then pumped back into the main tank. This creates a continuous loop of circulation and filtration.

In short, a sump system acts as the heart of your aquarium’s filtration system, providing both mechanical and biological filtration, as well as increasing water volume for stability.

Components of an Aquarium Sump System

A sump system may sound complicated, but it’s essentially a secondary tank with compartments designed for specific functions.

1. Overflow Box or Drain System

Installed inside the main aquarium.
Allows water to drain safely into the sump without flooding.
Works on the principle of gravity and siphoning.

2. Mechanical Filtration Section

Usually contains filter socks, filter pads, or sponges.
Removes large debris, uneaten food, and fish waste.

3. Protein Skimmer (for marine tanks)

Removes dissolved organic waste before it breaks down.
Essential for reef aquariums with corals and marine fish.

4. Biological Filtration Section

Filled with bio-media such as ceramic rings, bio balls, or live rock.
Promotes the growth of beneficial bacteria that process ammonia and nitrite.

5. Chemical Filtration Section

Can include activated carbon, phosphate removers, or other chemical media.
Helps remove toxins, odors, and discoloration.

6. Return Pump

Pushes the filtered water back into the main aquarium.
Needs to be strong enough to maintain steady water flow but not too strong to disturb fish.

7. Refugium (Optional)

A separate section for live plants, algae (like chaetomorpha), or small invertebrates.
Helps reduce nitrates and provides a natural food source.

Advantages of Using an Aquarium Sump System

Installing a sump may require extra effort compared to a standard filter, but the benefits far outweigh the challenges.

1. Increased Water Volume

A sump increases total system water capacity, which improves stability in parameters such as pH, temperature, and salinity.

2. Improved Filtration

Since sumps can hold multiple types of filtration media, they provide mechanical, chemical, and biological filtration more effectively than most hang-on-back (HOB) or canister filters.

3. Cleaner Display Tank

Heaters, skimmers, and other equipment can be hidden in the sump, leaving your main aquarium looking natural and uncluttered.

4. Better Oxygenation

The movement of water between sump and display increases gas exchange, ensuring fish have a healthy supply of oxygen.

5. Flexibility and Customization

Aquarists can design sump systems to fit their specific needs, whether they want a refugium, extra filtration, or automated dosing systems.

6. Supports Heavily Stocked Tanks

Since sump systems provide excellent biological filtration, they can handle larger bioloads, making them ideal for reef tanks and large freshwater aquariums.

Types of Aquarium Sump Systems

Not all sump systems are the same. Depending on your tank size and needs, you can choose from several variations.

1. Basic Wet/Dry Sump

Uses bio balls or ceramic media.
Provides strong biological filtration.
Best for freshwater aquariums.

2. Refugium Sump

Includes a section for live plants or algae.
Helps reduce nitrates and phosphates naturally.
Common in saltwater reef tanks.

3. Filter Sock Sump

Uses filter socks for mechanical filtration.
Requires frequent cleaning but highly effective for removing debris.

4. Custom DIY Sump

Built using glass or acrylic tanks.
Divided into compartments with baffles.
Flexible and cost-effective.

Setting Up an Aquarium Sump System

If you’ve never installed a sump before, the process may seem intimidating. But once you understand the flow, it becomes straightforward.

Step 1: Choose the Right Sump Size

The sump should be at least 20–40% of your display tank’s volume.
Larger sumps provide better filtration and stability.

Step 2: Install the Overflow

If your tank is not drilled, use an overflow box.
Ensure proper siphon break to avoid flooding.

Step 3: Setup Compartments

First chamber: mechanical filtration (filter sock or pad).
Second chamber: biological/chemical filtration.
Third chamber: refugium (optional).
Final chamber: return pump.

Step 4: Connect the Plumbing

Use PVC or flexible tubing for drain and return lines.
Include ball valves for controlling water flow.

Step 5: Place Equipment in Sump

Add heater, skimmer, or any other devices you want hidden.

Step 6: Test the System

Fill sump and display tank with water.
Run the system and check for leaks or noise issues.

Maintenance of Aquarium Sump Systems

A sump system is highly efficient, but it requires routine maintenance to stay effective.

Clean Filter Socks/Pads: Replace or wash them weekly.
Check Water Levels: Maintain proper sump water level to avoid pump damage.
Clean Return Pump: Remove debris and calcium buildup monthly.
Remove Detritus: Vacuum sump bottom during water changes.
Refugium Care: Trim plants or algae regularly.

Common Problems and Solutions

1. Microbubbles in Display Tank

Caused by poor sump design or leaks in plumbing.
Solution: Add baffles or bubble traps.

2. Flooding

Happens when overflow fails or sump overfills.
Solution: Install a siphon break and leave extra sump capacity.

3. Noisy Operation

Caused by rushing water or vibrations.
Solution: Use filter socks, soft tubing, or a Durso standpipe.

4. Evaporation Issues

Sumps increase surface area, leading to faster evaporation.
Solution: Install an auto top-off system (ATO).

Freshwater vs. Saltwater Sump Systems

While sumps are most popular in reef aquariums, they are equally beneficial for freshwater setups:

Freshwater Sump: Focuses on mechanical and biological filtration. Refugium may contain plants like java moss or duckweed.
Saltwater Sump: Includes protein skimmers, refugiums with macroalgae, and advanced dosing systems.

Conclusion

An aquarium sump system is one of the most effective upgrades you can add to your aquarium. It not only enhances water quality and stability but also keeps your display tank looking beautiful and equipment-free. While the initial setup may seem complex, the long-term benefits make it a worthwhile investment for both freshwater and saltwater enthusiasts.

Whether you want to maintain a thriving reef tank with delicate corals or a large freshwater aquarium with schooling fish, a sump system will provide the backbone of a healthy aquatic ecosystem.

FAQs About Aquarium Sump Systems

Q1: Do I need a sump for a freshwater aquarium?
Not always. While not essential, a sump improves water stability and filtration, especially in large or heavily stocked tanks.

Q2: How often should I clean my sump?
Perform light cleaning (filter socks, pump check) weekly and deep cleaning every 2–3 months.

Q3: Can I build a DIY sump system?
Yes! Many aquarists use spare glass tanks or acrylic containers and create compartments with baffles.

Q4: What size sump do I need?
Ideally, your sump should hold 20–40% of your display tank’s water volume. Larger is always better.

Q5: Can I run a sump without a protein skimmer?
Yes, especially in freshwater aquariums. In reef tanks, however, skimmers are highly recommended.

Q6: Does a sump replace other filters?
Yes, a well-designed sump can replace canister filters, hang-on-back filters, and air-driven sponge filters.

Q7: Will a sump make my aquarium quieter?
If designed correctly with baffles and proper plumbing, a sump can actually reduce noise compared to some external filters.
